How to Revive Old Lead Acid Batteries

Introduction: How to Revive Old Lead Acid Batteries

If you are like me you probably have old lead acid batteries sitting somewhere probably discharged

If you dont use lead acid battery always charge it before and recharge it every 3 monts

I ve tried this method on maintenance free lead acid, sealed lead acid and lead acid batteries, only difference is that maintenance free and SLA have hidden caps

Step 1: You Will Need

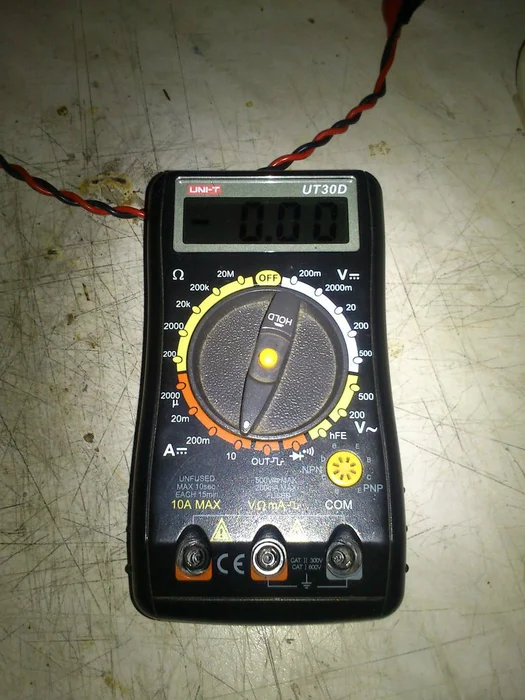

Multimeter
Adjustable PSU or Taper Charger (Smart chargers wont work)
Dead battery
Distilled water (you can also use rain water)
Rubber gloves
Screwdriver

Optional

Flashlight
Super Glue
Paper towel
Syringe

Pasted image 20240625141904.png Pasted image 20240625141915.png Pasted image 20240625141922.png Pasted image 20240625141928.png

Step 2: Measure Battery Voltage

Pasted image 20240625141955.png|250

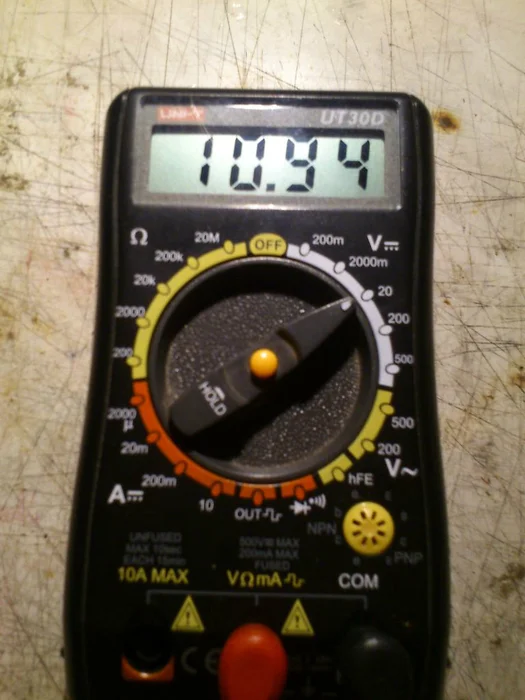

Connect multimeter to your battery and check voltage
Your battery shoudnt be lower than 11.8v (30%) in open circuit
If you read lower than that you will need to revive it if its higher than that try to just charge it

100% = 12.73 v
90% = 12.62 v
80% = 12.50 v
70% = 12.37 v
60% = 12.24 v
50% = 12.10 v
40% = 11.96 v
30% = 11.81v
20% = 11.66 v
10% = 11.51v

Step 3: Inspect the Cells

Pasted image 20240625143708.png Pasted image 20240625143716.png

Place paper towels on your working areas

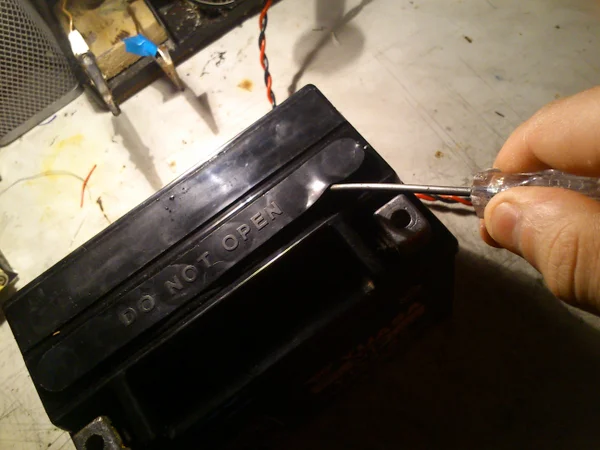

Now if you have SLA or maintenance free battery you will need to remove lid with screwdriver

Put on gloves and remove caps

Do this in well ventilated area

Wipe any wet spots with a paper towel

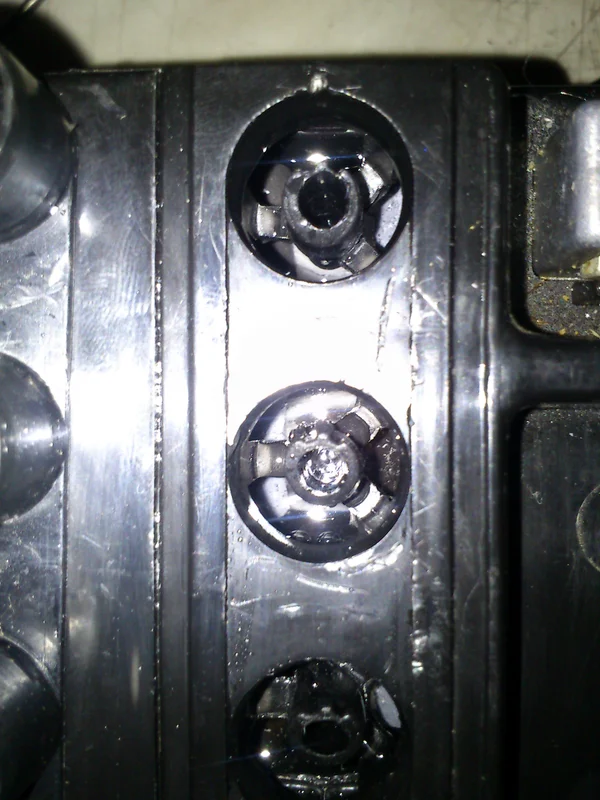

Then look inside cells and you should see white fabric that is dry

If you see brown fabric with white lumps your battery is probably sulfated and your chance of reviving battery is really bad

Step 4: Add Water

Pasted image 20240625143736.png Pasted image 20240625143745.png

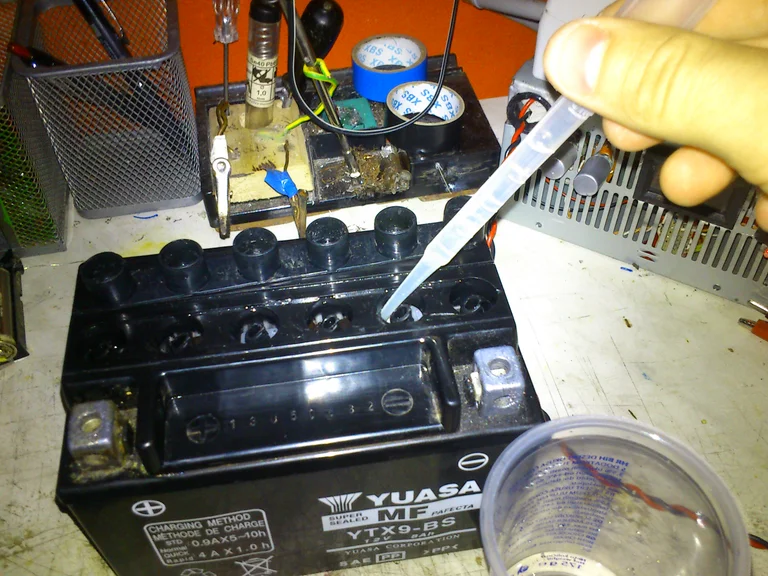

Take a syringe and fill each cell with water and look if fabric is absorbing water

Slowly shake battery and let it rest for 10 minutes

Step 5: Turn on Your PSU

Pasted image 20240625143811.png Pasted image 20240625143816.png Pasted image 20240625143823.png

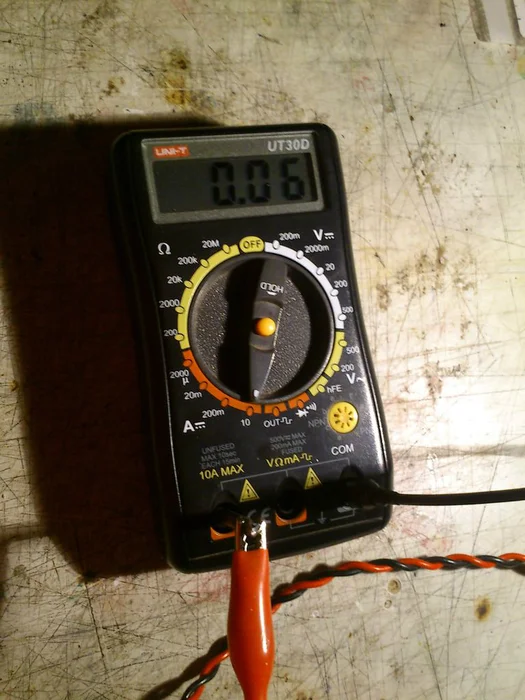

Now you will need to connect your multimeter to show you how much battery is drawing

Set your multimeter to 10A and connect it in series with charger and battery

When you connect it to the battery an it should draw 100-200mA

Thats sign of dead battery

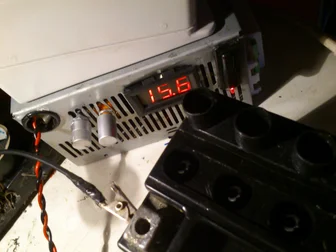

Set your psu to 14v (More details on why here) or connect your charger and let it sit for day or two

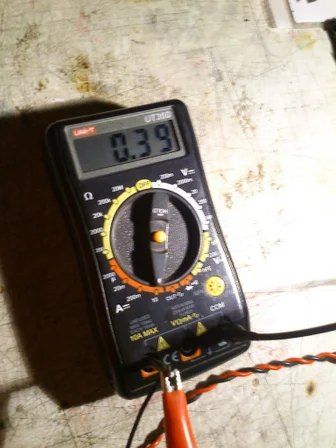

After that your battery should draw 500-1000mA

Then just leave battery and calculate how long battery should charge

Ah capacity = Amps that your battery is drawing x hours

For my battery 8Ah = 0.39A x 20,5 h

Step 6: Testing Battery

Pasted image 20240625143842.png|400

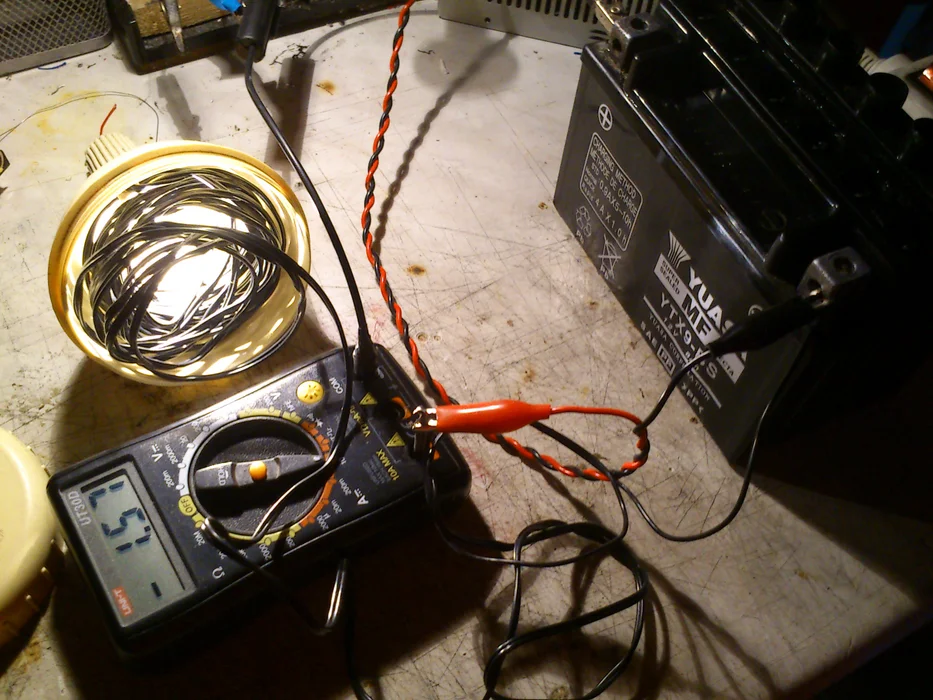

Now leave your battery for 1h and hook it up on car headlight or any 12v bulb

Voltage of battery shouldn't drop lower than 12v

Step 7: Edit: 28.04.2019

At the time i wrote this instructable i was 15, i didn't have a lot of equipment at that time or knowledge. Over the years i gained a lot more experience with batteries and how electronic things work so i decided to test what i wrote 5 years ago.
I got 2 old batteries that my uncle used with portable speaker and both were dead (4.5V when measuring on terminals). I charged them up slowly and tried to discharge.
First battery only had 402mAh (same one i charged in https://www.instructables.com/id/Portable-Power-Supply/, it's about 4y old) which is way too low for 7Ah battery and second one got 4424mAh which is kinda fine. I opened them up, instead of distilled water i used sulfuric acid that i got from old lead acid battery. I used pulse charger that i made and first battery didn't want to go over 10V which is clearly a sign of a bad cell. Second one was about 2 days on charger and when i tried discharging it i got 6682mAh which was really good for 4y old SLA battery. Same pulse charger was used on starter battery from motorcycle (12V 3Ah) and after few charge/discharge cycles it was good enough to start engine and charge at decent rate.

I can't say that pulse chargers (or desulfators) work but in my experience they did help with two battery while i had no luck with third one. I also tried simple 12V transformer and bridge rectifier and i had no luck bringing that first battery to life, it simply got hot and voltage dropped even further down to 6V which is a sign that cells are most likely damaged.
Desulfator/Pulse charger is simple 555 timer with 1khz signal turning mosfet on and off (1ms turn on time) with about 18V pulses up to 10A.
TL:DR
Method shown in this instructable works but your result will vary a lot. You might have luck and restore your battery or it may be damaged way beyond repair. Pulse chargers may work but if your battery is beyond repair just get a new one (you will also get discount by returning old one when buying new). Capacity will also vary, some batteries might be close to original capacity but if plates or electrolyte are bad it will have low capacity.
